ECI BA

Weighing Controller with Prescription


Description

With its updated hardware, bright screen and software structure; New ESİT ECI indicator presents functionality, performance and ease of use significantly higher than industrial standards. ECI-BA includes all the features standard ECI includes and ECI-BA can control filling process up to 16 silos and 96 recipes.

Calibration

With the standard feature of “Calibration Doctor”, ESIT ECI indicator allows users to calibrate systems with simple steps, while calibration quality is inspected. Therefore wrong or incomplete calibration is prevented. Furthermore calibration can either be made with standardized weights, digitally via input values or via load cell mV input. Since a backup can be taken of calibration values to the main board of the indicator; calibration values cane be restored in case of a fault.

gResolver Special Filtering

ESIT ECI Weighing Indicator includes gResolver filtering software, an ESIT design. gResolver Special Filtering software filters all damaging vibration effects on weighing operations, enabling both sensitive and fast weighing.

Features

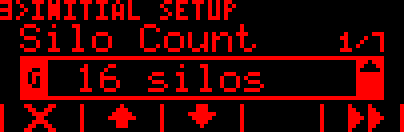

  • 4 silo filling on standard, up to 16 silos can be filled optional, 96 recipe memory
  • Adaptive, indexed menu system
  • Internet-based recipe entry software (96 recipe)
  • Easy connection with connectors (Solder-free)
  • USB reporting / update / backup
  • Calibration Doctor (weight,mV, factory, coefficient,digital)
  • Multi language option
  • Esit gResolver superior multi-frequency vibration filtering technology
  • New, bright, Graphical process monitoring
  • Automatic shoot adjusting
  • Internal temperature
  • Service menu (self-diagnostic) Printer Support
  • Printer output
  • Besides load cell connection in standard configuration USB serialcommunication and external display output
  • Fast-slow filling up to 16 silos
  • On-board 2 relay cards with 4 relays each. Expansion card and external relay card optional
  • Galvanic isolated communication docks, Internal thermometer
  • 800 Hz data output rate

Options


  • Communication Modules
    • RS232&RS485/RS422 Serial Communication Card (Modbus)
    • Profinet IO Communication Card
    • Ethernet/IP Module (Modbus TCP)
    • Profibus Module (DP Slave)
    • Modbus TCP Communication Card
  • Input-Output Modules
    • Built-in 4-Relay Card
  • Expansion Modules
    • EsRelay Connection Module

Technicial Specifications


Specifications;

Sensitivity
Accuracy class (OIML approved) 10000d (III)
Input sensitivity 0.5uV/d
Sensitivity % 0.0015 FS
Zero and gain stability 2 ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter gResolver (Intelligent Adaptive FIR filter)
Reading frequency 6.25-800 Hz
Load Cell
Number of Loadcells allowed (10 pieces 350 Ω) or (32 pieces 1100 Ω)
Analog input range (-25mV with +25mV) or (-1.6V with +1.6V)
Excitation voltage 10V DC
Enviroment
Operating temperature range (OIML approved) -10°C +40°C
Storage temperature range -20°C +70°C
Operating voltage and power 12-24 VDC, 5W
Operator handling and Display
Keyboard 5 Touch key, special function according to situation
Weight Display 4.5“ Bright Graphics Display
Function Display Gross, net, stable, zero, unit (g, kg, t,lb, lt, mV/V, m3)
Program Display Weighing Program
Housing
Material and protection class Impact-resistant plastic (PC), IP54 (Front Panel IP65)
Weight 0.36 kg (Standard)
Package weight and dimensions 0.55 kg (Standard) - 18x12.5x11cm
Communication
Standard Optional
Serial communication output
RS232 RS422 / RS485
Printer output
Serial printer -
Binary (BCD) output
- 1+19bit
Remote Display Output
check -
Digital input / output
- 4 input / 4 output (2A)
EXP modul (16 output)
Analog output
- 4-20mA / 0-10V (16bit)
Internal Relay
- Built-in 4 Relay Card

* BCD and EXP modul options can not be used simultaneously.
