ECI BF

Weighing Controller with Filling Feature


Description

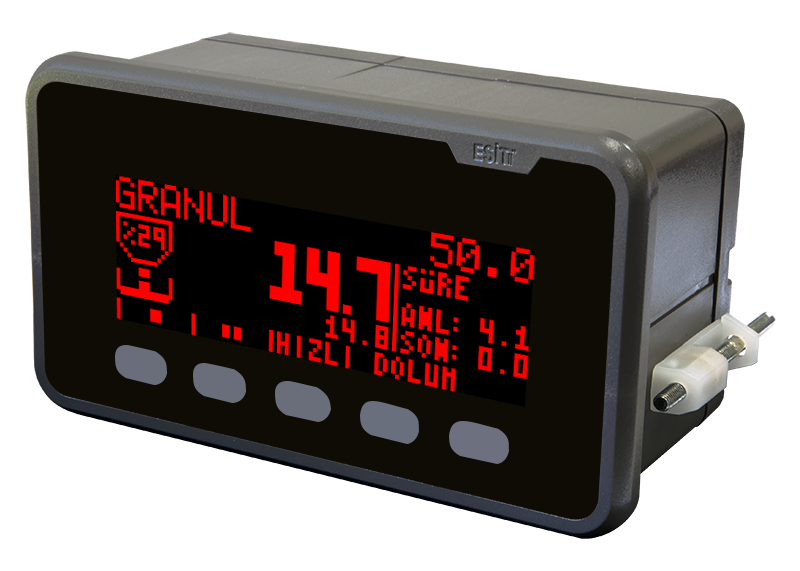

With its updated hardware, bright screen and filling software structure; New ESİT ECI indicator presents functionality, performance and ease of use significantly higher than industrial standards. Bearing standard ECI Indicator’s all features, ECI-BF offers bag filling, scale filling or ventilated filling options on one-speed or two-speed options with an increasing or decreasing amount logic. Simultaneous filling, total filling, filling time, average filling time and simultaneous filling percentage can be followed from its display.

Calibration

With the standard feature of “Calibration Doctor”, ESIT ECI indicator allows users to calibrate systems with simple steps, while calibration quality is inspected. Therefore wrong or incomplete calibration is prevented. Furthermore calibration can either be made with standardized weights, digitally via input values or via load cell mV input. Since a backup can be taken of calibration values to the main board of the indicator; calibration values cane be restored in case of a fault.

gResolver Special Filtering

ESIT ECI Weighing Indicator includes gResolver filtering software, an ESIT design. gResolver Special Filtering software filters all damaging vibration effects on weighing operations, enabling both sensitive and fast weighing.

Features


  • Adaptive, indexed menu system
  • Easy connection with connectors (Solder-free)
  • 800 Hz data output rate

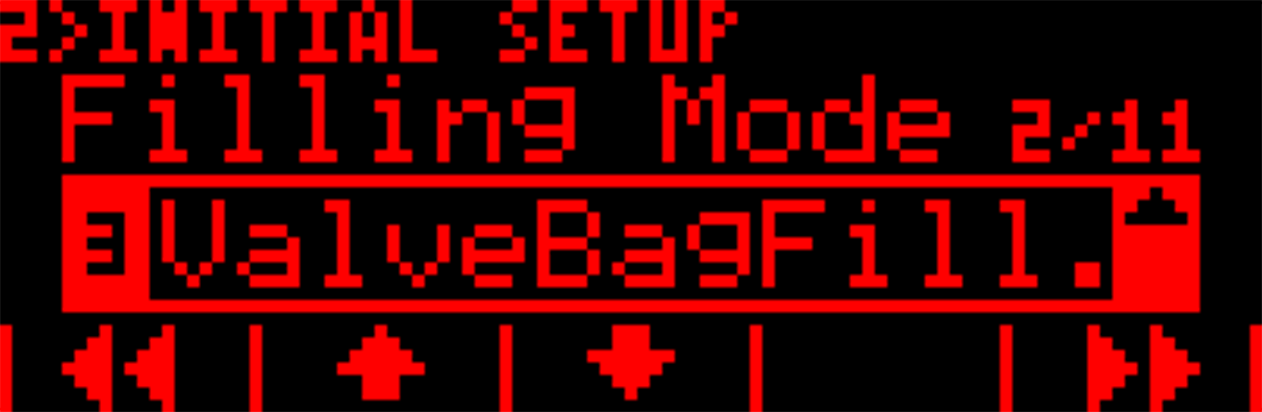

  • Bag filling program, option to choose 16 different products
  • Fast-slow filling
  • Yeni parlak Grafik ekranda dolum süreci izleme

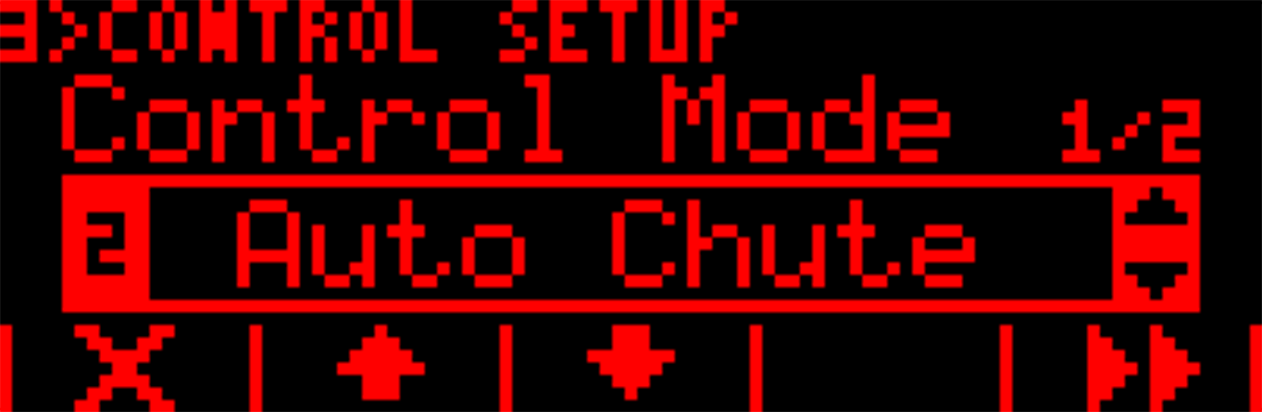

  • Automatic shoot adjusting
  • Tolerans aşımında uyarı sinyali
  • Galvanic isolated communication docks, Internal thermometer
  • USB reporting / update / backup
  • Calibration Doctor (weight,mV, factory, coefficient,digital)
  • Multi language option
  • Possibility to move calibration information between different devices
  • Esit gResolver superior multi-frequency vibration filtering technology
  • Internal temperature
  • Service menu (self-diagnostic) Printer Support
  • Printer output
  • Besides load cell connection in standard configuration USB serialcommunication and external display output

Options


  • Communication Modules
    • RS232&RS485/RS422 Serial Communication Card (Modbus)
    • Profinet IO Communication Card
    • DeviceNet Communication Card
    • Profibus Module (DP Slave)
    • Ethernet/IP Module (Modbus TCP)
    • Modbus TCP Communication Card
  • Input-Output Modules
    • Built-in 4-Relay Card

Usage areas


Bagging Scale


ECI BF is used in bagging scale.

Click for more information

Technicial Specifications


Specifications;

Sensitivity
Accuracy class (OIML approved) 10000d (III)
Input sensitivity 0.5uV/d
Sensitivity % 0.0015 FS
Zero and gain stability 2 ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter gResolver (Intelligent Adaptive FIR filter)
Reading frequency 6.25-800 Hz
Load Cell
Number of Loadcells allowed 10 pieces 350 Ω or 32 pieces 1100 Ω
Analog input range (-25mV with +25mV) or (-1.6V with +1.6V)
Excitation voltage 10V DC
Enviroment
Operating temperature range (OIML approved) -10°C +40°C
Storage temperature range -20°C +70°C
Operating voltage and power 12-24 VDC, 5W
Operator handling and Display
Keyboard 5 Touch key, special function according to situation
Weight Display 4.5“ Bright Graphics Display
Function Display Gross, net, stable, zero, unit (g, kg, t,lb, lt, mV/V, m3)
Program Display Bag Filling Program
Housing
Material and protection class Impact-resistant plastic (PC), IP54 (Front Panel IP65)
Weight 0.36 kg (Standard)
Package weight and dimensions 0.55 kg (Standard) - 18x12.5x11cm
Communication
Standard Optional
Serial communication output
RS232 RS232 /RS422 / RS485
Printer output
Serial printer -
Remote Display Output
check -
Internal Relay
Built-in 4 relay card -
