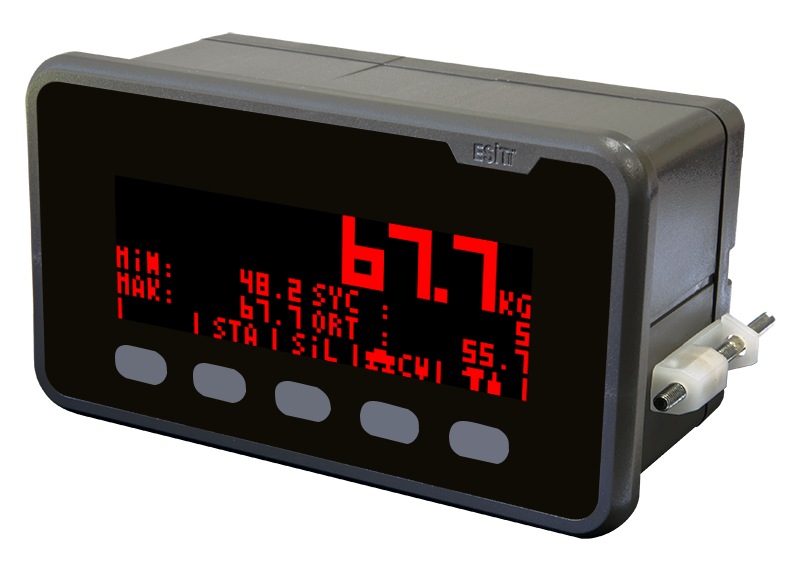

ECI CW

Checkweigher Weighing Controller


Description

New ESİT ECI-CW, with its updated hardware, bright screen and superior product checking software, makes sensitive weight control in both dynamic and static conditions, easy and convenient. As ECI-CW includes all the features of standard ECI, can make dynamic weighing and produce rejection signals with its 800 Hz sampling rate. Product information can be entered to its memory and products can be chosen via controller’s menu.

gResolver Special Filtering

ESIT ECI Weighing Indicator includes gResolver filtering software, an ESIT design. gResolver Special Filtering software filters all damaging vibration effects on weighing operations, enabling both sensitive and fast weighing. Features

Features


  • New, bright, Graphical process monitoring
  • Checkweigher Program
  • Out of tolerance signal
  • Calibration backup
  • Galvanic isolated communication docks, Internal thermometer

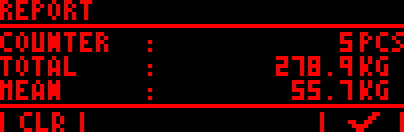

  • Last 1000 weighing records and error memory

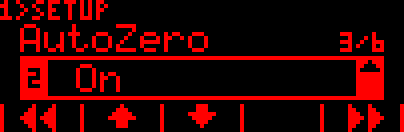

  • Adaptive, indexed menu system
  • Internet-based recipe entry software (96 recipe)
  • 1600 Hz measurement / 800 Hz data output rate
  • Easy connection with connectors (Solder-free)
  • USB reporting / update / backup
  • Calibration Doctor (weight,mV, factory, coefficient,digital)
  • Multi language option
  • Esit gResolver superior multi-frequency vibration filtering technology
  • Internal temperature
  • Service menu (self-diagnostic) Printer Support
  • Besides load cell connection in standard configuration USB serialcommunication and external display output

Options


  • Communication Modules
    • RS232&RS485/RS422 Serial Communication Card (Modbus)
    • Profinet IO Communication Card
    • Ethernet/IP Module (Modbus TCP)
    • Profibus Module (DP Slave)
    • Modbus TCP Communication Card
  • Input-Output Modules
    • Built-in 4-Relay Card
    • Analog 4-20 mA/0-10V output (16 bit)

Usage areas


Checkweigher


ECI CW is used in checkweigher.

Click for more information

Technicial Specifications


Specifications;

Sensitivity
Accuracy class (OIML approved) 10000d (III)
Input sensitivity 0.5uV/d
Sensitivity % 0.0015 FS
Zero and gain stability 2 ppm/°C
A/D converter 24bit Sigma-Delta
Digital filter gResolver (Intelligent Adaptive FIR filter)
Reading frequency 6.25-800 Hz
Load Cell
Number of Loadcells allowed 10 pieces 350 Ω or 32 pieces 1100 Ω
Analog input range (-25mV with +25mV) or (-1.6V with +1.6V)
Excitation voltage 10V DC
Enviroment
Operating temperature range (OIML approved) -10°C +40°C
Storage temperature range -20°C +70°C
Operating voltage and power 12-24 VDC, 5W
Operator handling and Display
Keyboard 5 Touch key, special function according to situation
Weight Display 4.5“ Bright Graphics Display
Function Display Gross, net, stable, zero, unit (g, kg, t,lb, lt, mV/V, m3)
Program Display Checkweigher Program
Housing
Material and protection class Impact-resistant plastic (PC), IP54 (Front Panel IP65)
Weight 0.36 kg (Standard)
Package weight and dimensions 0.55 kg (Standard) - 18x12.5x11cm
Communication
Standard Optional
Serial communication output
RS232 Serial communication output
Printer output
Serial printer Printer output
Remote Display Output
check Remote Display output
Analog output
- 4-20mA / 0-10V (16bit)
Internal Relay
- Built-in 4 Relay Card
