Digital Load Cell Weighing Indicator


Description

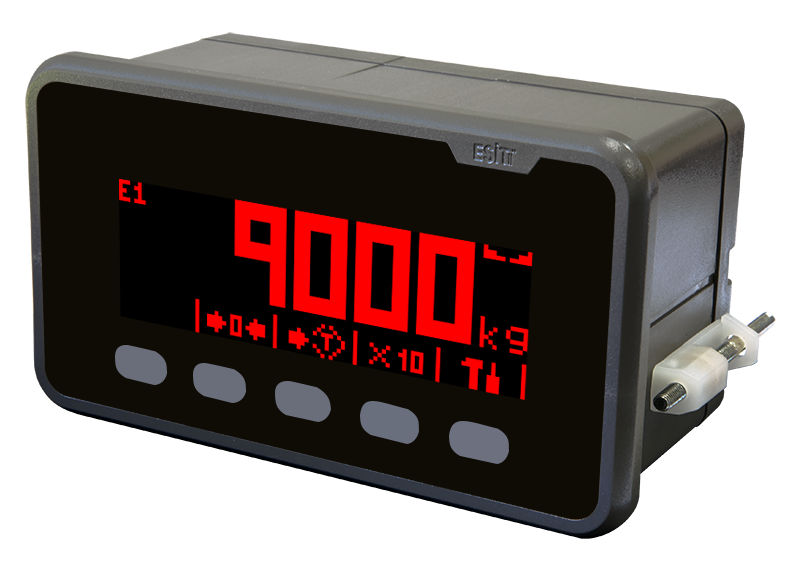

New ESİT ECI Digital Weighing Indicator is designed for weighing with digital load cells and to be used in vehicle scales. There are two different models of ECI Digital: designed for Modbus or Canbus output digital load cells. Although ESİT ECI is designed for panel use, there are optional casings for colon or desktop use as well. ESİT ECI indicates the weighing process clearly, via its various warnings and graphics on IP65 enclosure-rated front panel touch screen and new bright graphic screen. With a standard mounted USB port; ESİT ECI offers free firmware update, backup and reporting functions.

Features


  • Weighing program with digital load cells
  • Communication with load cells via Modbus or Canbus protocols
  • Indicator, platform scale or vehicle scale modes

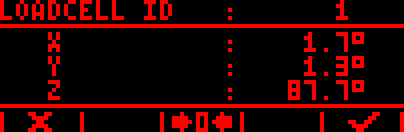

  • Angle correction function when used with ESIT CAD series digital load cells
  • Faulty load cell warning

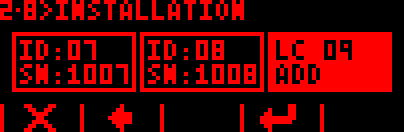

  • Automatic weighing platform corner adjustment
  • Galvanic isolated communication docks, Internal thermometer
  • New bright graphic display (4.5’’) and capacitive touchpad
  • Adaptive, indexed menu system
  • Easy connection with connectors (Solder-free)
  • USB reporting / update / backup
  • Possibility to move calibration information between different devices
  • Multi language option
  • Intelligent plug and play type option cards and modular expansion
  • Internal temperature
  • Service menu (self-diagnostic) Printer Support
  • Printer output
  • Besides load cell connection in standard configuration USB serialcommunication and external display output

Options


  • Communication Modules
    • RS232&RS485/RS422 Serial Communication Card (Modbus)
    • Profinet IO Communication Card
    • Ethernet/IP Module (Modbus TCP)
    • Profibus Module (DP Slave)
    • Modbus TCP Communication Card
  • Input-Output Modules
    • Built-in 4-Relay Card
    • Analog 4-20 mA/0-10V output (16 bit)
  • Expansion Modules
    • Binary Output(1+19 bit)
    • EsRelay Connection Module

Technicial Specifications


Technical Specifications;

Load Cell
Reading Speed
CANbus 500 kb/s Modbus 115.200 baud
A mount of  load cells can be fed 16 pcs
Excitation voltage 12V
Environment
Operating temperature range (OIML Approved) -10°C +40°C
Storing temperature range -20°C +70°C
Operating voltage and power 12-24 VDC, 5W
Operator Handling and Display
Keyboard 5 Touch key, special function according to situation
Weight Display 4.5“ Bright Graphics Display
Function Display Gross, net, stable, zero, unit (g, kg, t,lb, lt, mV/V, m3)
Program Display Weighing Program
Housing
Material and protection class Impact-resistant plastic (PC), IP54 (Front Panel IP65)
Weight 0.36 kg (Standard)
Package weight and dimensions 0.55 kg (Standard) - 18x12.5x11cm
Communication
Standard Optional
Serial communication output
RS232 RS422 / RS485, Profinet IO, Ethernet IP, Profibus, Modbus TCP
Printer output
Serial Printer -
Binary (BCD Output)
- 1+19bit
Remote Display output
Loadcell yük hücresi load cell indikatör otomatik tartı aletleri kantar baskül özel çözümler -
Dijital input / output*
- 4 in / 4 out (2A) EXP module (16 out)
Analog Output
- 4-20mA / 0-10V (16bit)
Built-in Relay
- 2 4-Relay Cards

* BCD and EXP modules cannot be used together.
